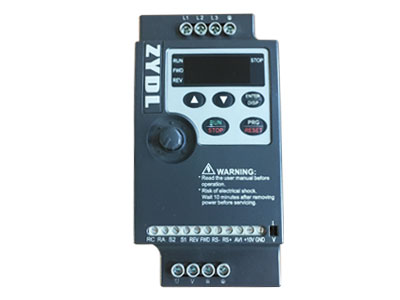

輸入Input

額定電壓范圍Rated Voltage Range

單相170-260V;三相360-440V;
3-phase 200V±15%; single-phase 230V±15%

額定頻率
Rated Frequency

50/60Hz

輸出Output

額定電壓范圍
Rated Voltage Range

三相0～220/260V；0-380V
3-phase 0～220/260V

頻率范圍
Frequency Range

0.00～400.0Hz

控制方式
Control capability

載波頻率
Carrier Frequency

2000～10000Hz；固定載波和隨機載波可選擇(F159)
2000~10000Hz; Fixed carrier-wave and random carrier-wave can be selected

輸入頻率分辨率
Input Frequency Resolution

數字設定：0.01Hz，模擬設定：上限頻率×0.1%
Digital setting: 0.01Hz, analog setting: max frequency 0.1%

控制方式ControlMode

磁通矢量控制，V/F控制
VVVF control /Flux vector Control

過載能力
Overload Capacity

150%額定電流60秒
150% rated current, 60 seconds.

轉矩提升
Torque Elevating

手動轉矩提升0.1%～30.0%、自動轉矩提升
Manual Torque Promotion 0.1%~30.0% (VVVF)

V/F曲線
V/F Curve

三種方式：直線型、平方型、自定義V/F曲線型
3 kinds of modes: beeline type, square type and under-defined V/F curve.

直流制動
DC Braking

直流制動頻率：1.0～5.0 Hz，制動時間：0.0～10.0秒
DC braking frequency: 1.0~5.0 Hz, braking time: 0.0~10.0s

點動控制
Jogging Control

點動頻率范圍：下限頻率～上限頻率；點動加減速時間：0.1～3000.0秒
Jogging frequency range: min frequency~ max frequency, jogging acceleration/deceleration time: 0.1~3000.0s

自動循環、多段速運行
Auto Circulating Running and multi-stage speed running

通過自動循環或控制端子實現最多15段速運行

Auto circulating running or terminals control can realize 15-stage speed running.

內置PID
Built-in PID adjusting

可方便實現過程閉環控制系統easy to realize a system for process closed-loop control

操作功能
Operation Function

頻率設定
Frequency Setting

電位器或外部模擬信號（0～5V，0～10V，0～20mA）；控制面板（端子）▲／▼鍵、外部控制邏輯及自循環設定Potentiometer or external analog signal (0～5V, 0～10V, 0～20mA); keypad (terminal)▲／▼ keys, external control logic and automatic circulation setting.

起/?？刂?br/>Start/Stop Control

端子控制、控制面板控制、通訊控制Terminal control, keypad control or communication control

運行命令通道
Running Command Channels

三種通道：控制面板給定、控制端子給定、串行通訊口給定3 kinds of channels from keypad panel, control terminal and series communication port.

主頻率源
Frequency Source

主頻率源：數字給定、模擬電壓給定、模擬電流給定、串行口給定等
Frequency sources: given digit, given analog voltage, given analog current and given series communication port.

輔助頻率源
Accessorial frequency Source

5種輔助頻率?？伸`活實現輔助頻率微調、頻率合成等Flexible implementation of 5 kinds of accessorial frequency fine adjustments and frequency compound.

選配件
Optional

內置EMI濾波器、內置制動單元、Modbus通訊、遠控面板
Built-in RFI filter, built-in braking unit, Modbus communication, local operation panel with potentiometer, telecontrol panel

保護功能Protection Function

輸入缺相，輸入欠電壓，直流過電壓，過電流，過載，電流失速，過熱，外部干擾等
Input out-phase, Output out-phase, input under-voltage, DC over-voltage, over-current, over-load, current stall, over-heat, external disturbance

顯 示
Display

LED數碼管顯示當前輸出頻率、當前轉速（rpm）、當前輸出電流、當前輸出電壓、當前線速度、故障類型以及系統參數、操作參數；LED燈指示變頻器當前的工作狀態
LED nixie tube showing present output frequency, present rotate-speed (rpm), present output current, present output voltage, present linear-velocity, types of faults, and parameters for the system and operation; LED indicators showing the current working status of inverter.

環境條件
Environment Conditions

設備場所Equipment Location

室內，不受陽光直曬，無塵埃、腐蝕性氣體、可燃性氣體、油霧、水蒸汽、滴水或鹽份等In an indoor location, Prevent exposure from direct sunlight, Free from dust, tangy caustic gases, flammable gases, steam or the salt-contented, etc.

環境溫度Environment Temperature

-10℃～+45℃

環境濕度Environment Humidity

90%以下（無水珠凝結現象）Below 90% (no water-bead coagulation)

振動強度Vibration Strength

0.5g（加速度）以下Below 0.5g (acceleration)

海拔高度Height above sea level

1000米以下（海拔超過1000米需降額使用）1000m or below

適配電機
Applicable Motor

0.1～55KW
